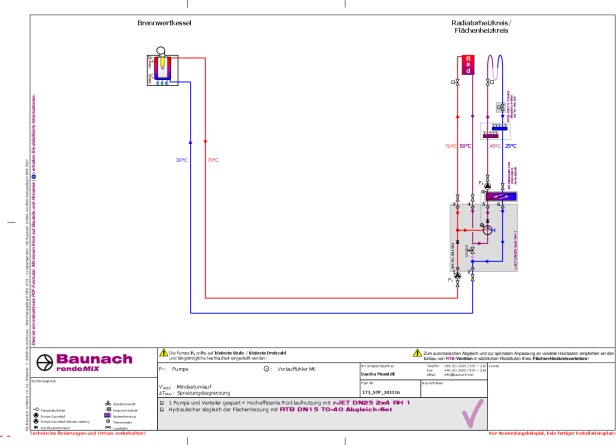

DN25s

Direktheizkreis (HT):

Kvs = 9,2 • V'max[100mbar] = 2,9m³/h

Q'max[20K] = 67kW

Mischkreis (NT) mit ST DN25s:

Kvs = 7,2 • V'max[100mbar] = 2,3m³/h

Q'max[10K] = 27kW

ohne (0)

Fließrichtung Erzeuger links

DN25s

Kvs = 9,1

V'max[100mbar] = 2,9m³/h

Q'max = 33kW [10K] = 67kW[20K]

ohne (0)

Fließrichtung Erzeuger links

RTB DN15 (Rad)

DN15

DN20

DN25

DN32

Kvs = 1,8

V'max[100mbar] = 0,57m³/h

Q'max = 9,3kW [20K] • Q'max[10K] = 6,6kW

Kvs = 1,8

V'max[100mbar] = 0,57m³/h

Q'max = 9,3kW [20K] • Q'max[10K] = 6,6kW

Kvs = 2,5

V'max[100mbar] = 0,79m³/h

Q'max = 18kW [20K] = 7,5l/min [10/45°C]

Kvs = 5,7

V'max[100mbar] = 1,8m³/h

Q'max = 42kW [20K] = 17l/min [10/45°C]

Kvs = 6,7

V'max[100mbar] = 2,1m³/h

Q'max = 49kW [20K] = 20l/min [10/45°C]
