Return utilization for classic condensing boiler systems - without buffer tank

Condensing boiler with two returns, without minimum circulation volume.

Hot water preparation primarily for heating operation

Hot water tank not solar-assisted (monovalent)

Static air heater circuit, mixed surface heating circuit

Surface heating circuit with system separation

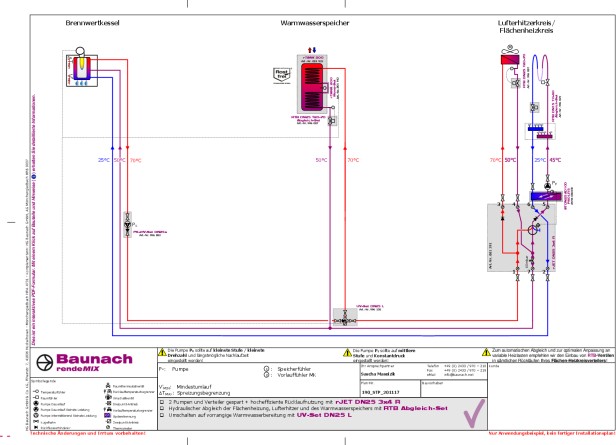

Your personal hydraulic plan (00190_STP)

00190_STP

Specialist partner access required

Only Baunach specialist partners can download hydraulic plans free of charge. Register now as a Baunach specialist partner to gain access to many hydraulic plans.

Your products (8)

rJET DN25 3x4 R

Item number: 001 291

Quantity

Nominal diameter

Performance class

Pump flanges

Flow direction Producer

ST DN25 AD100 P40 LR 5

Item number: 001 038

Quantity

Nominal diameter

Performance class

Pump flanges

Flow direction Producer

UV-Set DN25 L1

Item number: 996 150

Quantity

Nominal diameter

Performance class

Flow direction Producer

PKuHV-Set DN25s G1½(i)xRp1

Item number: 996 082

Quantity

Nominal diameter

RTB DN25 T20-70 Abgleich-Set (flink)

Item number: 996 007

Quantity

Nominal diameter

Performance class

RTB DN15 T0-40 Abgleich-Ventil (Fbh)

Item number: 996 029

Quantity

Nominal diameter

Performance class

rTANK 200 NL3-5

Item number: 001 932

Quantity

Liter

rTANK 200 Mono-Set

Item number: 001 942

Quantity
